| Frame |
| Frame |

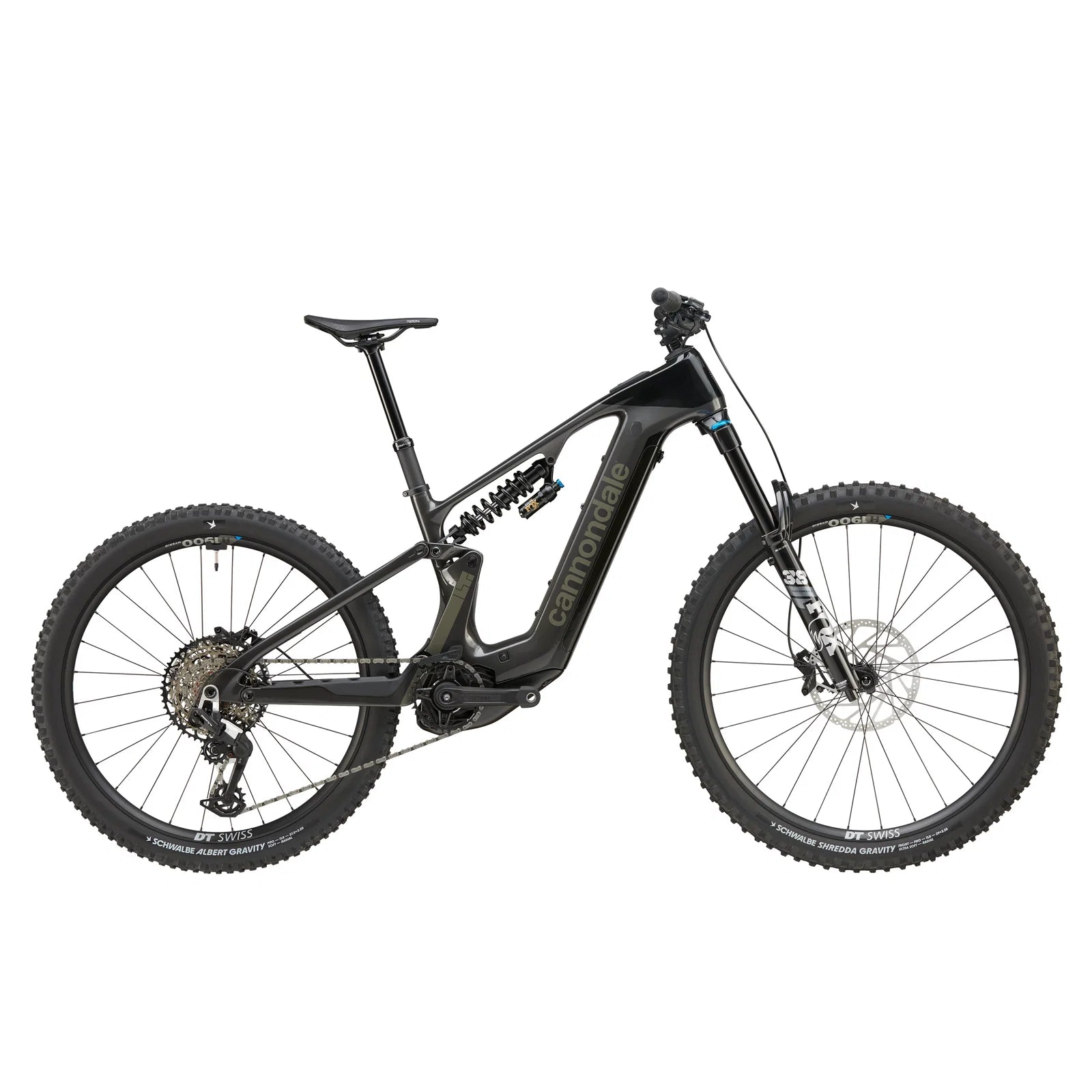

Moterra LT Carbon, 27.5" rear wheel, 29" front wheel, 165mm travel, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH, 200mm native post mount brake, 1.5” – 1.8” tapered headtube |
| Fork |
Fox Float Performance 38, 170mm, Grip Damper 3Pos, 15x110mm Kabolt thru-axle, tapered steerer, 44mm offset |
| Headset |
Acros ICR, 1.5" to 1.8", sealed bearings |
| Rear Shock |
Fox DHX Performance, Coil, 2 pos adj, 230x65mm |
| E-System |
| Drive Unit |
Bosch Performance Line CX |
| Battery |
Bosch PowerTube, 800Wh |
| Charger |
Bosch 4A |
| Display |
Top Tube System Controller w/ Mini Remote |
| Drivetrain |
| Rear Derailleur |
SRAM Eagle 90, T-Type |
| Shifters |
SRAM Eagle 90, T-Type, 12-speed |
| Chain |
SRAM Eagle 70 T-Type, 12-speed |
| Crank |
e*thirteen e*spec Helix Core, 55mm chainline, 160mm, 34T |
| Rear Cogs |
SRAM Eagle 70 T-Type, 10-52, 12-speed |
| Brakes |
| Brakes |
TRP EVO Pro 4-piston hydraulic disc, 220/203mm rotors |
| Brake Levers |
TRP EVO Pro hydraulic disc |
| Wheels |
| Rims |
DT Swiss H 1900 Spline, 30mm inner width, TC (tubeless ready) |
| Spokes |
DT Swiss Competition, straight pull |
| Tire Size |
2.5 |
| Wheel Size |
297 |
| Hubs |
(F) DT Swiss 370, 15x110mm thru-axle / (R) DT Swiss 370 Ratchet System 18, 12x148mm thru-axle, 6-bolt |
| Tires |
(F) Schwalbe Shredda Front, 29x2.5", Radial casing, Addix Ultra Soft Foldable, tubeless ready / (R) Schwalbe Albert, 27.5x2.5", Radial casing, Addix Soft Foldable, tubeless ready |
| Front Tire |
Schwalbe Shredda Front, 29x2.5", Radial casing, Addix Ultra Soft Foldable, tubeless ready |
| Rear Tire |
Schwalbe Albert, 27.5x2.5", Radial casing, Addix Soft Foldable, tubeless ready |
| Components |
| Handlebar |
Cannondale 3 riser, 6061 Alloy, 25mm rise, 8° sweep, 4° rise, 800mm |
| Stem |
Cannondale 1, 6061 Alloy, 35.0, 40mm, 0° |
| Grips |
Cannondale TaperRidge |
| Saddle |
Fizik Terra Aidon X5, 145mm, Wingflex, S-Alloy Mobius rail |
| Seatpost |
Cannondale DownLow Dropper, internal routing, 34.9, 150mm (S), 170mm (M), 200mm (L), 230mm (XL) |
| Extra |
Tubeless Valves, Bosch PowerMore range extender compatible |
